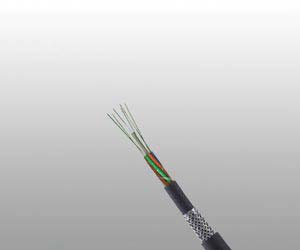

F5 QFCB

Applications

These steel armoured optical fibre cables are flame retardant, low smoke, halogen free and fire resistant, used

for communication and emergency systems that need to be operational during fire.

Standards

IEC 60794

IEC 60811-2-1

IEC 60331-25

IEC 60332-3-24

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2004

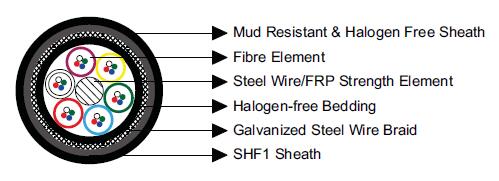

Construction

F5 QFCBF5 QFCB

Fibre Element: Loose tube core design.

Central Strength Element: Steel wire or fi bre reinforced plastic (FRP).

Bedding: Halogen free and fl ame retardant thermoplastic compound.

Armour: Galvanized steel wire braid.

Outer Sheath1: Halogen free and fl ame retardant, UV-stabilized, thermoplastic compound,  SHF1.

Outer Sheath2: Mud resistant and halogen-free thermoplastic compound.

Electrical Characteristics

Fibre Type

9/125

50/125

50/125

62.5/125

ITU-T type

G652.D

G651

G651

-

IEC11801 Classifi cation

OS1 & OS2

OM2

OM3

OM1
